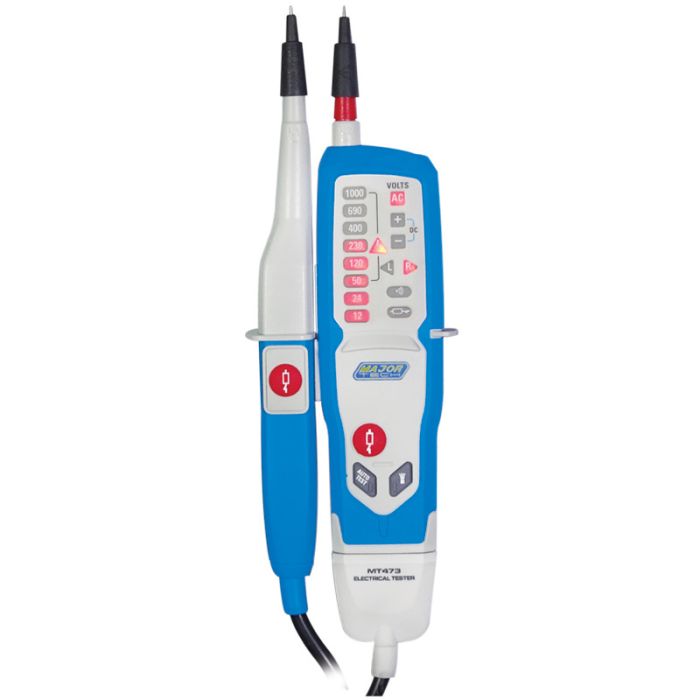

MAJOR TECH VOLTAGE TESTER LED 1000V AC/DC
SKU
7122489
$178.50
VIP: $170.00The MT473 is a 2-Pole voltage, continuity, and phase tester with rapid LED indication of voltage levels
| Units of Measure | EACH |
|---|---|
| Brand | MAJOR TECH |
| Features | The voltage range is from 12V to 1000V AC/DC on LED indication When AC/DC Voltage is detected, the meter has three ways to indicate the voltage by LED visual display, sound, and vibration when the load buttons are pressed The vibration operates similar to traditional solenoid type voltage testers Meets IEC1010-1 CAT IV 600V safety requirements The MT473 has a rotary field detection for testing 3-Phase systems as well as a single pole Phase Test Other features include built-in flashlight, Continuity Buzzer, and Diode Test Made with high quality heavy duty molded IP64 case, thicker cord with wear indicator, and well-fitted durable probe protector. 400V 60Hz |
| DC Voltage | 12V to 1000V |
|---|---|
| AC Voltage | 12V to 1000V |
| Rotary Field | 100V |
| Voltage Test with Load | 7kO |
| RCD Test | 30mA at 230V |
| Continuity | Yes |
| Continuity Threshold | Less than or equal to 400kO |
| AC Bandwidth | 50Hz |
| Polarity Indication | Yes |
| Overrange Indication | Yes |
| Load Test with Vibration | Max 3.5mA at 1000V |
| Low Input Impedance | Less than 6kO |
| Flashlight | Yes |
| Enclosure | Moulded Case |
| Low Battery Indication | Yes |
| Power Source | 2 x AAA |
| Weight | 237g |
| Dimension | 240 x 78 x 30mm |
| Safety Specs | IEC61010-1 CAT IV 600V |
