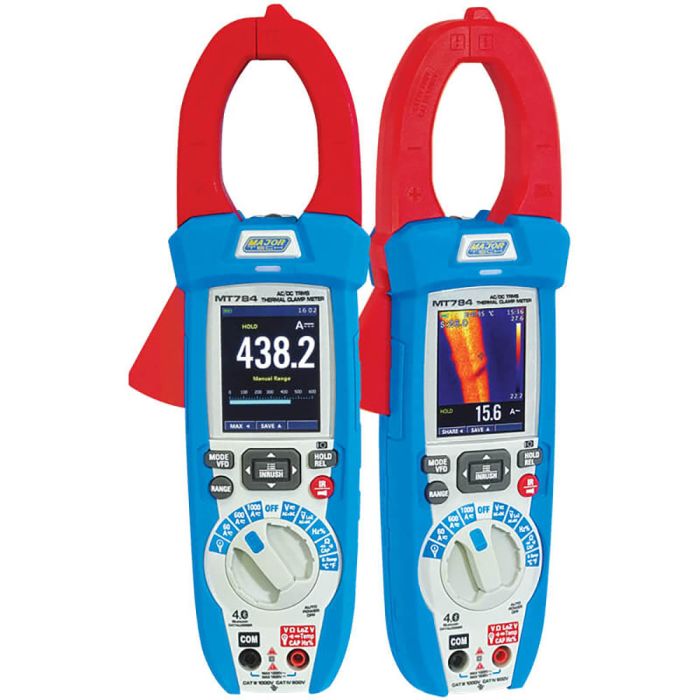

MAJOR TECH DC THERMAL IMAGING CLAMP METER 1500V BLUE
SKU
7122376
$1,989.75
VIP: $1,895.00The Major Tech MT784 DC Thermal Imaging Clamp Meter is a professional-grade instrument designed for high-voltage solar and industrial applications
| Units of Measure | EACH |
|---|---|
| Brand | MAJOR TECH |
| Features | Combines advanced clamp meter functionality with built-in thermal imaging for fast fault detection Capable of handling up to 1500V DC for solar PV testing Provides accurate True RMS readings with enhanced safety and efficiency Ideal for maintenance, troubleshooting, and diagnostics in electrical and renewable energy systems Continuity/Diode test/Bargraph/Bluetooth/Records events and Trends/NCV/Overrange Indication/Min Max/Peak hold/Data Hold/Low battery indication: Yes |
| Type | DC Thermal Imaging Clamp Meter |
|---|---|
| Voltage Range | Up to 1500V DC |
| Features | Clamp Meter + Thermal Imaging |
| Application | Solar PV, industrial, and electrical systems |
| Display | Digital with thermal imaging |
| DC voltage | 0.1mV to 1500V |
| AC voltage | 0.001V to 1000V |
| DC Current | 0.01A to 1000A |
| AC Current | 0.01A 1000A |
| AC+DC TRMS Voltage | 0.001V to 1000V |
| Duty Cycle | 10 to 90percent |
| Digital Display | 6000 TFT |
| Enclosure | Moulded case |
| Power source | 7.4V Rechargeable |
| Weight | 550g |
| Dimensions | 270 x 95 x 42mm |
| Colour | Blue |
