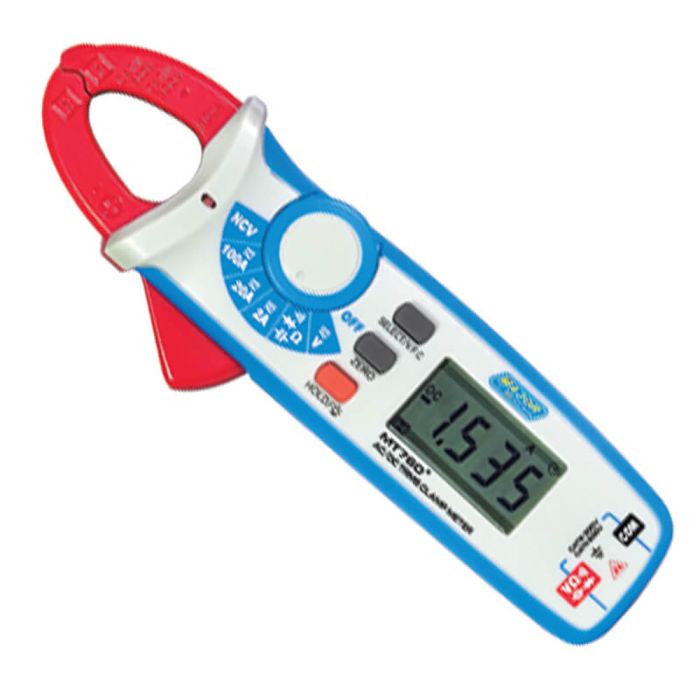

MAJOR TECH 100A AC/DC CLAMP METER 17MM BLUE
SKU
7122508
$219.45
VIP: $209.00The MT760 is a CAT III 300V, 2000-count True RMS clamp meter capable of measuring up to 100A AC/DC with a fine resolution of 1mA
| Units of Measure | EACH |
|---|---|
| Brand | MAJOR TECH |
| Features | Featuring a compact design, it offers high reliability, enhanced safety, and fast sampling with excellent accuracy All measurements are clearly displayed on a backlit LCD screen The meter supports 600V AC/DC voltage readings, capacitance, resistance, diode testing, and includes a continuity buzzer Its VFC (Variable Frequency Control) function ensures accurate voltage readings in high-frequency environments such as Variable Frequency Drives Additional functions include Zero/Relative mode for offset adjustment in capacitance, resistance, DCV, ACV, DCA, and ACA, along with non-contact voltage detection Housed in a durable, double-moulded rubber casing designed for modern professional use NCV/Overrange Indication/Continuity/Diode Test/Min Max/Data Hold/Back Light/Low Battery Indication: Yes |
| DC Current | 1mA to 100A |
|---|---|
| AC Current | 1mA to 100A |
| DC Voltage | 0.1mV to 600V |
| AC Voltage | 1mV to 600V |
| AC Voltage VFD | 200.0V to 600V |
| Capacitance | 1pF to 20mF |
| True RMS Measurements | ACA, ACV |
| AC Bandwidth | 50 to 400Hz |
| Digital Display | 2000 |
| Jaw Size | 17mm |
| Enclosure | Over moulded case |
| Batteries | 2 x AAA |
| Weight | 170g |
| Dimensions | 175 x 60 x 34mm |
| Colour | Blue |
