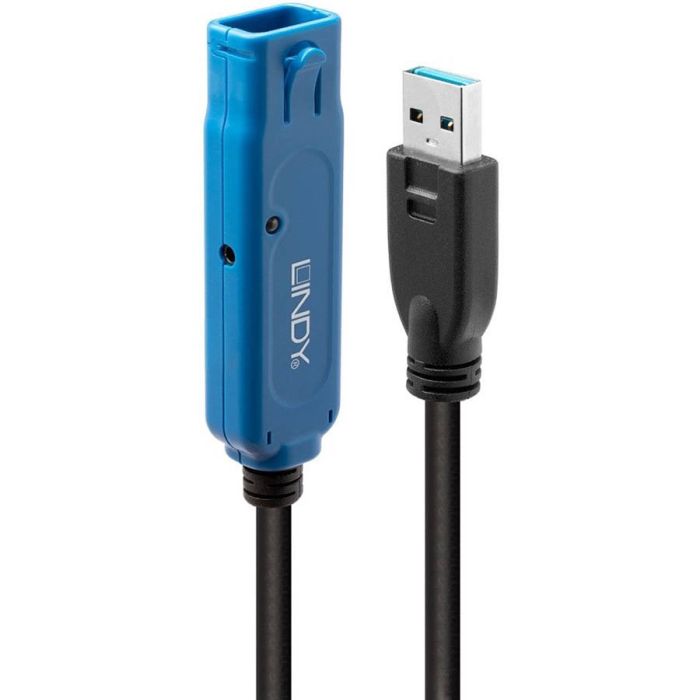

LINDY 43158 ACTIVE PRO EXTENTION CABLE USB-A 3.0 8M BLACK/BLUE
SKU
7104014
$233.86
VIP: $206.59The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances
| Units of Measure | EACH |
|---|---|
| Availability | ETA 3 days |
| Brand | LINDY |
| Features | With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably This extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 50m (depending on the cable configurations used) This cable features a single active repeater module to boost the USB signal A fully deployed extension system is limited to a maximum of 50m and 5 repeater modules Any combination of cables and a single hub can be connected providing the 50m/5 repeater limit is not exceeded The extension hub must always be the last segment of the extension system This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used) Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps Easy to use - connects to the device's existing USB cable (5m maximum) 2 year warranty Connectors Cable Construction Nominal Attenuation: 0.064MHz - less than 0.08dB, 0.256MHz - less than 0.11dB, 0.512MHz - less than 0.13dB, 0.772MHz - less than 0.15dB, 1.0MHz - less than 0.20dB, 4MHz - less than 0.39dB, 8MHz - less than 0.57dB, 12MHz - less than 0.67dB, 24MHz - less than 0.95dB, 48MHz - less than 1.35dB, 96MHz - less than 1.90dB, 200MHz - less than 3.20dB, 400MHz - less than 5.80dB Miscellaneous |
| Connector A | USB Type A Male |
|---|---|
| Connector B | USB Type A Female |
| Power | 2.5/0.7mm DC Connector |
| Housing Material | Plastic |
| Connector Plating | Nickel |
| Pin Construction | Brass |
| Pin Plating | Gold Flash |
| Dimensions - USB A Male | 15 x 49 x 8mm |
| Dimensions - USB A Female | 20 x 80 x 13mm |
| Length | 8m |
| Standard | USB 3.1 Gen 1 / 3.0 |
| Colour | Black |
| Type | Round |
| Jacket Diameter | 7mm +/- 0.15mm |
| Jacket Material | Half matt PVC low toxic |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 24/24/20AWG |
| Shielding | AL Mylar and braid |
| Supported Bandwidth | 5 Gbps |
| Minimum Bend Radius | 36mm |
| Operating Temperature | 0C - 50C |
| Storage Temperature | -20C - 60C |
| Transmission Medium | Twisted Pair |
| Transmission Technology | USB 3.1 Gen 1 / 3.0 |
| Packaging Type | Carton Box |
| Packaging Dimensions | 240 x 200 x 70mm |
| Net Weight | 0.75kg |
| Gross Weight | 0.9kg |
| Warranty | 2 Years |
| Certificated | CE, FCC, RoHS and REACH |
