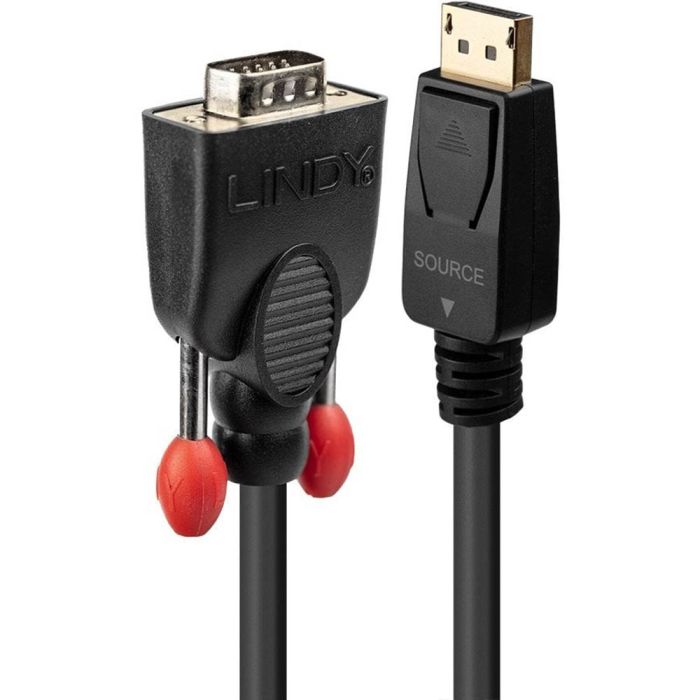

LINDY 41942 DISPLAYPORT TO VGA CABLE 2M BLACK
SKU
7112127
$54.17
VIP: $45.36The Lindy DisplayPort to VGA Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a legacy VGA display or projector
| Units of Measure | EACH |
|---|---|
| Availability | ETA 3 days |
| Brand | LINDY |
| Features | It converts the digital signal from the DisplayPort connection into an analogue VGA signal and supports high definition video resolutions up to 1920x1200@60Hz This cable can also be used to add another display to extend the available desktop workspace and increase productivity Connects a DisplayPort equipped device to a VGA display or projector Supports resolutions up to 1920x1200@60Hz Supports video mirroring and extended desktop modes Male to male connections for a secure direct connection 2 year warranty CONNECTORS DIMENSIONS CABLE CONSTRUCTION GENERAL 100MHz-450MHz 2.44-5.099dB 450MHz-8100MHz 5.094-32.906dB |
| Connector A | DisplayPort Male |
|---|---|
| Connector B | VGA Male |
| Housing Material | |
| DisplayPort | ABS |
| VGA | PVC |
| Connector Plating | Gold plated |
| Pin Construction | Copper |
| Pin Plating | Gold plated |
| DisplayPort | 42(w) x 19.8(d) x 11.6(h)mm |
| VGA | 53(w) x 33.8(d) x 16.7(h)mm |
| Length | 2m |
| Standard | VGA, DisplayPort 1.1 |
| Colour | Black |
| Type | Round |
| Jacket Diameter | 6mm |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 28AWG |
| Shielding | Aluminum Braid 85% |
| Supported Bandwidth | 1.65Gbps |
| Maximum Resolution | 1920x1200@60Hz |
| Nominal Attenuation | |
| Minimum Bend Radius | 60mm |
| Operating Temperature | 0 C - 70 C |
| Storage Temperature | -10 C - 85 C |
| Packaging Type | Polybag |
| Warranty | 2 Years |
| Certificated | CE, FCC, RoHS, REACH, UL & California Proposition 65 |
