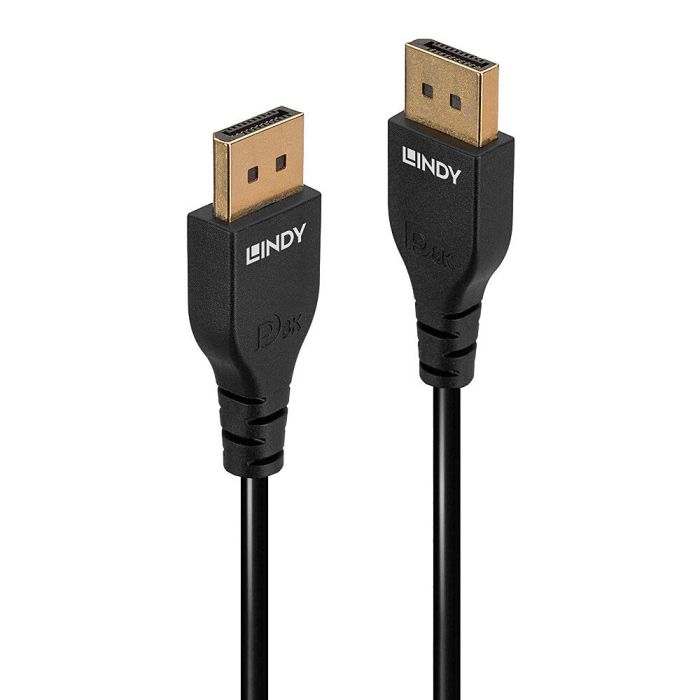

LINDY 36462 SLIM DISPLAYPORT 1.4 CABLE 2M BLACK
SKU
7114824
$44.39
VIP: $39.10Lindy's range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure
| Units of Measure | EACH |
|---|---|
| Availability | ETA 3 days |
| Brand | LINDY |
| Features | With their compact, high performance design, these cables are ideal for situations where space is limited around source & display ports, such as with gaming monitors or graphics cards Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability Supporting DP 1.4 resolutions including 8K at 60Hz and 4K at 144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display) Professional choice slim DisplayPort 1.4 cable with low profile connectors Supports UHD resolutions up to 8K 7680 x 4320 at 60Hz 4:2:2 8bit and 4K 4096 x 2160 at 144Hz 4:2:2 10bit Robust ABS housing with 24K gold-plated connectors and contacts Triple shielded cable, corrosion resistant tinned copper 30AWG conductors 10-year warranty Connectors Cable construction |
| Connector A | DisplayPort Male (Non-Latching) |
|---|---|
| Connector B | DisplayPort Male (Non-Latching) |
| Housing Material | PVC |
| Connector Plating | Gold plated |
| Pin Construction | Phosphor bronze |
| Pin Plating | Gold plated |
| Length | 2m |
| Standard | DP 1.4 |
| Colour | Black |
| Type | Round |
| Jacket Diameter | 5.7mm |
| Jacket Material | PVC |
| Conductor Material | Copper |
| Conductor Gauge | 30AWG |
| Shielding | Tinned Copper Braid 85% |
| Supported Bandwidth | 32.4 Gbps |
| Maximum Resolution | 7680 x 4320 at 60Hz 4:2:2 |
| Nominal Attenuation | -5.5dB at 1350MHz; -8.5dB at 2700MHz; -11dB at 4050MHz |
| Minimum Bend Radius | 45.6mm |
| Operating Temperature | 10 to 80 degree C |
| Storage Temperature | -0 to 80 degree C |
| Dimension | 19.4(W) x 9.6(D) x 42.6(H)mm |
| Warranty | 10 Years |
| Certificated | RoHS, REACH, UL |
