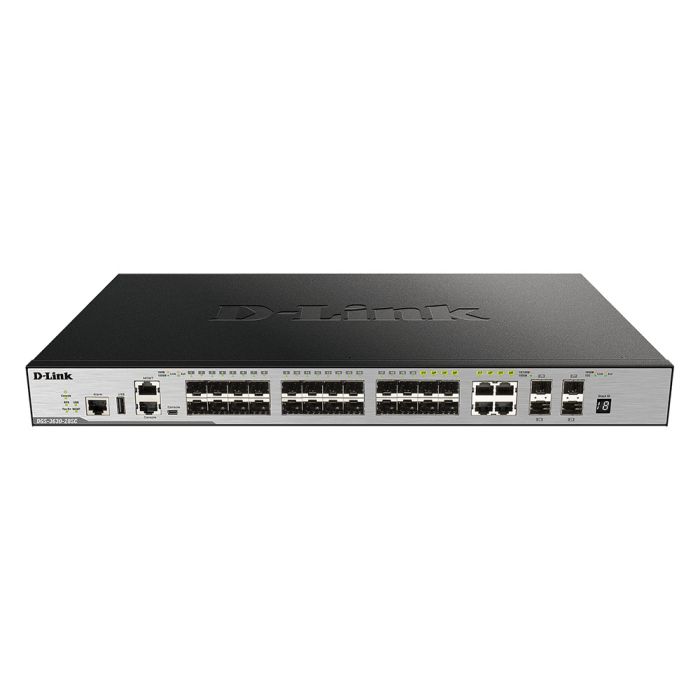

D-LINK DGS-3630-28SC SWITCH 3 LAYER BLACK
SKU
7114685
$5,868.55
VIP: $5,303.0820 x SFP ports
| Units of Measure | EACH |
|---|---|
| Availability | In Stock |
| Brand | D-LINK |
| Features | 4 x combo 10/100/1000BASE-T/SFP ports 4 x 10G SFP+ ports 6 kv surge protection on all RJ-45 access ports Switch resource management (SRM) for ?exible management of system resources Redundant power supply (RPS) support MPLS L2VPM/L3 VPN support Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6 SDN enabled switch, compatible with Openflow 1.3 Combo 10/100/1000BASE-T/SFP ports: 4 Power Saving By System Hibernation: Yes Energy Efficiency Ethernet (EEE): Yes D-Link Single IP Management (SIM): Yes Head of line (HOL) Blocking Prevention: Yes 802.1w Rapid Spanning Tree (RSTP): Yes 802.1s Multiple Spanning Tree (MSTP): Yes Link Aggregation Group Per Device: 32 Max Port Per Link Aggregation Group: 8 Equal Cost Multi Path Route (ECMP): Yes Weighted Cost Multi Path Route (WCMP): Yes 802.1Qbb Priority-based Flow Control (PFC): Yes (only for 10G port) MAC Access List; Yes Max Access Control List (ACL) Entries: 3072 Port based 802.1X Authentication: Yes Host based 802.1X Authentication: Yes Identity Driven 802.1X Policy Assignment: Yes |
| Type | Port switch |
|---|---|
| SFP ports | 20 |
| 10G SFP+ ports | 4 |
| RJ 45 and Mini-USB port | 1 |
| RJ 45 Management Port | 1 |
| RJ 45 Alarm port | 1 |
| USB 2.0 port | 1 |
| Switch Capacity | 128 Gbps |
| Max. Packet Forwarding Rate | 95.24 Mpps |
| Store and Forwarding Forwading | Yes |
| Operation Humidity | 10 to 90 percent RH |
| Storage Humidity | 5 to 95 percent RH |
| Operating Altitude | Up to 2000 M |
| Maximum Power Consumption | 63.58 W |
| Standby Power Consumption | 30.1 Watt |
| Maximum Heat Dissipation | 216.81 BTU/h |
| MTBF | 280,612.09 hours |
| Power Input AC Input | 100 to 240 VAC, 50-60 Hz |
| Redundant Power Supply | Yes |
| CPU Speed | 1GHz |
| DRAM Size | 1GB |
| Flash Memory Size | 1GB (Byte) |
| Packet Buffer Size | 4MB |
| FAN | Yes |
| Comply with RoHS 6 | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By Cable Length | Yes |
| Power Saving By LED Shut Off | Yes |
| Power Saving By Port Shut Off | Yes |
| Physical Stacking | Yes |
| Physical Stacking Bandwidth | 80 G (support stacking trunk) |
| Units Per Physical Stack | 9 |
| Units Per SIM Stack | 32 |
| MAC Address Table Size | up to 68K (SRM's LAN mode) |
| Black Hole MAC Address | Yes |
| 802.3x Flow Control | Yes |
| BPDU Filtering | Yes |
| Root Guard | Yes |
| Loop Guard | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| Multiple ERPS Ring | Yes |
| G.8032 ERPS | Yes (Support ERPSv2) |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Port Mirroring | Yes |
| VLAN Mirroring | Yes |
| Flow based (ACL) mirroring | Yes |
| Jumbo Frame | 12K Bytes |
| L2 Protocol Tunneling | Yes |
| Flex Link | Yes |
| Loopback Detection (LBD) | Yes |
| Max IGMP Snooping Groups | up to 8K (refer to SRM) |
| IGMP Snooping Fast Leave | Yes |
| MLD Snooping Groups | Up to 4K (refer to SRM) |
| VLAN Groups | 4,096 |
| Selective Q in Q | Yes |
| VLAN Translation | Yes |
| VLAN trunking | Yes |
| 802.1Q VLAN | Yes |
| 802.1v Protocol based VLAN | Yes |
| Double VLAN (Q in Q) | Yes |
| ISM VLAN (Multicast VLAN) | Yes |
| IP Interface | Yes |
| Max Number of IP Interface | Yes |
| Loopback Interface | Yes |
| Null Interface | Yes |
| ARP | Yes |
| ARP Entries | Up to 32K (SRM's IP mode) |
| ND Entries | Up to 16K (SRM's IP mode) |
| UDP Helper | Yes |
| IPv6 Tunneling | Yes |
| IPv6 Neighbor Discovery (ND) | Yes |
| VRRP | Yes |
| Routing Table Entry | 16K (16,384) |
| L3 Forwarding Table Entry | Up to 32K (SRM' IP mode) |
| Default Route | Yes |
| Static Route | Yes |
| Policy based Route (PBR) | Yes |
| Graceful Restart (GR) Helper | Yes |
| Port based Bandwidth Control | Yes |
| Flowbased bandwidth Control | Yes |
| Queue Based Bandwidth Control | Yes |
| IP Access List | Yes |
| IPv6 Access List | Yes |
| Time Based ACL | Yes |
| CPU Interface Filtering | Yes |
| 802.1X | Yes |
| Weight | 3.79kg |
| Dimension | 441 x 259.8 x 44mm |
