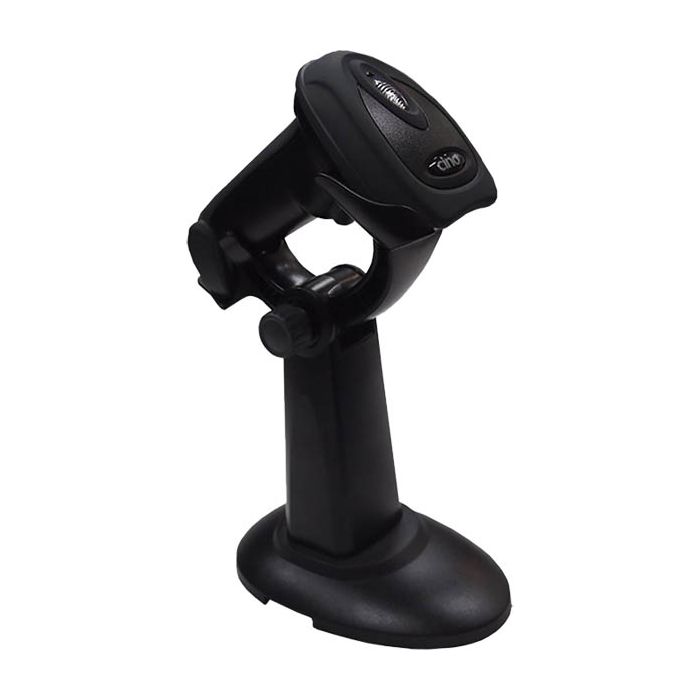

CINO F-780 BARCODE SCANNER WITH USB CABLE AND STAND BLACK
SKU
7043814
$223.36
VIP: $204.33The all new FuzzyScan FBC-780 series Long Range Linear Imager has set up a new standard as the best cost-performance solution for aim and shoot data capture applications. Equipped with the innovative DynaTrack (patent pending) system , the F780 automatically capture the best possible bar code image through intensive controls amongst the illumination, image capture and the image processing systems.
| Units of Measure | EACH |
|---|---|
| Availability | ETA 2 days |
| Features | Solid State Linear Imager Technology, No moving parts! Rugged and compact design Supports GS1 DataBar Bright Sharp Aiming Line Fast Decoding Rate Optical and Audible Read Confirmation Exceptional Read Performance Manual, Presentation Mode or Auto Trigger Universal interface Reads Degraded and damaged bar-codes Powerful, Flexible Architecture Embedded outstanding DataWizard to meet most of the data editing requirements Symbologies supported: Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
| Ambient Light Immunity | 0 to 100000 Lux |
|---|---|
| Colour | Black |
| Communication Type | Corded |
| Contrast Ratio | 20% minimum reflective difference |
| Depth of field | More then 60 cm on 100% UPC/EAN symbols, More then 86 cm on 20 mil code 39 |
| Drop Specification | Withstands 50 drops at 1.8 m to concrete, Withstands 10 drops at 2 m to concrete |
| EMC/Safety Standards | FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE), Taiwan EMC (BSMI), LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam) |
| Environmental Sealing | IP41 |
| ESD Protection | Functional after 15kV discharge |
| External Dimensions | 70.5(w) x 97.8(d) x 156.2(h)mm |
| Indicators/Controls | 3 LED's for Power, good read, and Status Indicators |
| Interfaces | PS2 Keyboard wedge, Direct PS2 Keyboard link, Standard RS-232, HID USB, USB Virtual COM Port, Laser and Wand emulation |
| Light Source | 630 nm visible red LED |
| Operating Environment | -10 to 50C, RH 5% to 95% non condensing |
| Operating Modes | Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation. |
| Pitch Angle | +/- 65 deg. |
| Power Consumption | Operating: Typical 180 mA at 5VDC, Standby: Typical 80 mA at 5VDC |
| Programmable Beeper | Optional Vibrator (Special Order with MOQ) |
| Programming Method | Bar code command, Windows Utility - Fuzzyscan Powertool, Condensed Data Wizard via bar code command, Full featured Data Wizard via Fuzzyscan Powertool |
| Resolution | Minimum 3 mil (Code 39, PCS 0.9) |
| Scan Engine | High Performance Linear Imaging Engine |
| Scan Pattern | Single Line |
| Scan Rate | Dynamic scanning rate up to 500 scans/sec |
| Skew Angle | +/- 65 deg. |
| Storage Environment | -40 to 70C, RH 5% to 95% non condensing |
| Supply Voltage | 5 VDC |
| Warranty | 24 months |
| Weight | 157g (excluding the cable) |
